2 tools

Mow under fences and guardrails

4 levels

Mechanical telescopic arm

25-40 l/min

Minimum oil flow required for vehicle

2-years warranty

High quality materials that ensure a long life

Overview

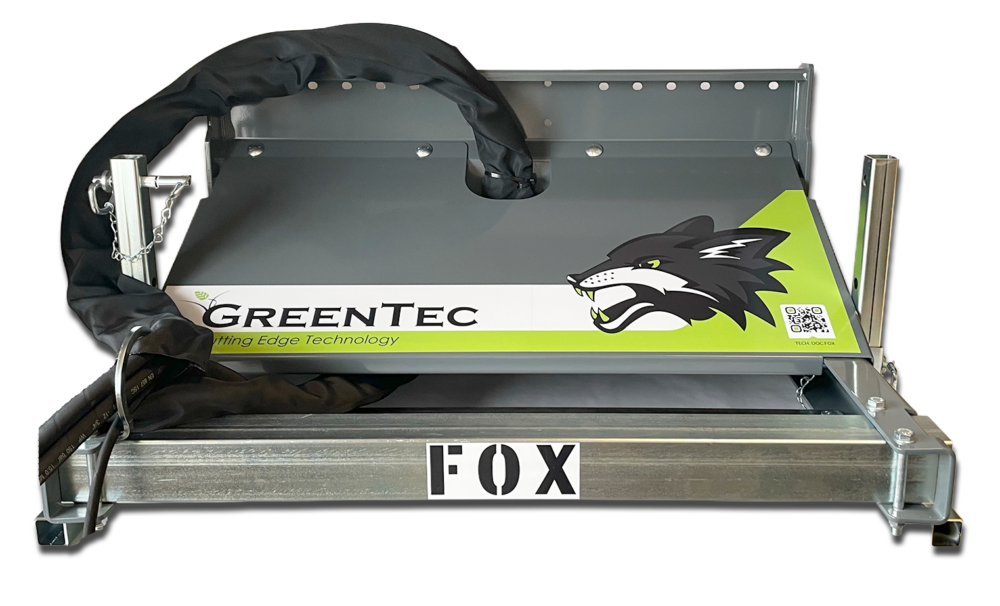

FOX

The Multi Carrier FOX is specially developed to carry our Barrier Mower RI 60 & 82. It is an ideal solution for people who are interested in mowing grass under horse fences, guardrails or around trees in orchards.

The arm on the FOX can be adjusted to the terrain if you want a shorter or longer range. The FOX has many mounting options as it can be either front or rear mounted on tractors through category 1 or 2. The FOX can also be front mounted on loaders.

Specifications

FOX

Reach from center of vehicle to end of tool	128-188 cm	4'2"-6'2"
Standard mounting options	Cat. 1/2, Euro brackets or universal plate
Required hydraulic connections	1 x double acting + 1 x drain
Standard oil flow	40 l/min @ 190 bar	10.6 gpm @ 2756 psi
Alternative oil flow	25 l/min @ 190 bar	6.6 gpm @ 2756 psi
Weight without brackets	115 kg	254 lb

Fence line trimmer mounted on skid steer loader

Under the hood

FOX

Mechanical telescopic arm

The arm has 4 levels from 128-188 cm (4'2"-6'2")

Oil flow divider

Longer life for the oil engine

Flexible assembly

Assemble the FOX for left or right handed work

Support legs

Easy to park the machine when not in use

Wide variety of brackets

Mount the FOX on tractors and loaders

Equipment

Mechanical telescopic arm

Adjust the arm to the terrain with 4 different levels

The telescopic arm can be adjusted in 4 levels with an interval of 20 cm (7.87") from 128 to 188 cm (4'2" to 6'2"). With the arm flexibility it becomes easy to maneuver the FOX in areas with limited space, such as bike paths, trails and orchards.

Expand all equipment

Equipment

Oil flow divider

Ensure long life on the oil engine due to correct oil supply and pressure

An overpressure and anti-cavitation valve are build into the oil flow divider so no damage happens to the machine as well as the attachment tool. It ensures that cavitation does not occur and the correct pressure and return are applied.

Expand all equipment

Standard equipment

Oil flow divider

Mechanical telescopic arm

Support legs

Mounting with cat. 1 or 2

Mounting

Loader brackets FOX / Manitou (OPTE7018)

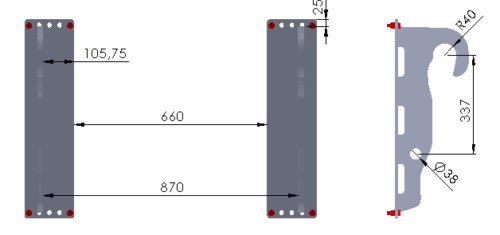

Loader brackets FOX / New Holland (OPTE7022)

Loader brackets FOX / JCB Q-fit (OPTE7014)

Loader brackets FOX / Claas tele (OPTE7012)

Loader brackets FOX / Merlo tele (OPTE7020)

Loader brackets FOX / Volvo high (OPTE7025)

Loader brackets FOX / Euro Hitch (OPTE7013)

Loader brackets FOX / Trima-Ville (OPTE7024)

Loader brackets FOX / Weidemann hydr. (OPTE7034)

Loader brackets FOX / Volvo L30-L35 (OPTE7028)

Loader brackets FOX / Schäffer small std. (OPTE7033)

Loader brackets FOX / Schäffer tele (OPTE7027)

Loader brackets FOX / JCB 409 Agri (OPTE7032)

Loader bracket FOX / Skid steer (OPTE4051)

Loader bracket FOX / Avant (OPTE7030)

Loader brackets FOX / JCB V1 std. (OPTE4057)

Loader brackets FOX / Kramer spe. (OPTE4251)

Universal plate FOX (OPTE4272)

Loader brackets FOX / Terex TL 80-100-120 (OPTE7023)

Loader bracket FOX / Thaler new (OPTE4276)

Loader bracket FOX / Thaler old (OPTE4278)

Loader bracket FOX / Giant (OPTE4280)

Loader bracket FOX / MX-Mailleux (OPTE4281)

Loader bracket Fox / CAT tele (4059)

Loader bracket Fox / JLG-Deutz (OPTE7015)

Loader bracket Fox / Kramer, small model (OPTE7016)

Loader bracket Fox / Merlo ZM3 (OPTE7019)

Loader bracket Fox / Merlo ZM2 (OPTE7021)

Loader bracket Fox / Volvo low (OPTE7026)

Loader bracket Fox / NH LB115 (OPTE7029)

Loader bracket Fox / Bobcat (OPTE7031)

Three point mounting FOX, cat. 1 & 2 (OPTE1257)

Loader bracket Fox / CAT tele (OPTE4059)

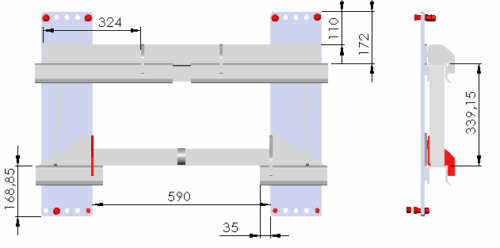

Loader bracket Fox / Schäffer small old (OPTE7035)

Loader bracket / JD tele (OPTE7041)

Equipment overview

Oil flow divider	Standard
Mechanical telescopic arm	Standard
Support legs	Standard
Cat. 1/2, Euro brackets or universal plate	Standard
Other bracket types	Optional

Technical documents

Name

File type

OPTE 7041 – Loader bracket / JD tele

pdf, 100.32 KB

Download

OPTE7035 Loader bracket Fox / Schäffer small old

pdf, 139.31 KB

Download

OPTE7034 – Loader bracket Fox / Weidemann hydr.

pdf, 99.33 KB

Download

1...

Sales material

Name

File type

Puma / FOX – Brochure

pdf, 4.07 MB

Download

FOX + RI 82 – Video

mp4, 167.09 MB

Download

FOX + RI 82 – Work images

zip, 228.78 MB

Download

FAQ

General questions

We sell our products through a network of dealers. We encourage you to contact your local GreenTec dealer for more information.

If you need any sales advice or cannot find a dealer near you, feel free to contact us on telephone: +45 75553644 or e-mail: sales@greentec.eu

We are available Monday to Thursday from 08.00 - 16.00 CET and Friday from 08.00 - 15.00 CET.

All products are manufactured in Denmark at our production facilities which consist of 5,500 m². We have employees welding components, assembling machines and checking features before the product is shipped to the customer.

We love to give customers a tour of our factory. If you are planning a visit to Denmark, you can schedule an appointment through e-mail: sales@greentec.eu

Our dealers sometimes do demonstrations. You must contact your local GreenTec dealer and ask if they have any upcoming demonstrations.

You cannot rent GreenTec machines directly through us.

We encourage you to contact your local GreenTec dealer to get a list of customers that might be able to offer this service.
