2.3 m

Vertical working width

< 11 cm

Maximum branch thickness

2 km/h

Maximum driving speed

2-years warranty

High quality materials that ensure a long life

Overview

HX 230

The HX 230 is a powerful machine for tree trimming. The cutter bars have low maintenance costs as they are made in Hardox steel which is some of the most durable material on the market. You do not even need to sharpen the cutter bars as they will stay strong and cut branches with ease.

The HX 230 can be mounted on most large and medium-sized vehicles, such as tractors, loaders and excavators.

Specifications

HX 230

Working width	2.3 m	7’7”
Branch thickness	11 cm	4.33”
Driving speed up to	2 km/h	1.24 mph
Required hydraulic connections	1 x double acting
Minimum oil flow	50 l/min @ 190 bar	13.2 gpm @ 2756 psi
Weight	220 kg	485 lb

Tree trimmer mounted on front end loader

Under the hood

HX 230

Gearbox

Ensures high performance

Cutting system

60 double strokes per minute

Accessibility

Change fingers with ease

Strong build

Long life and minimal maintenance

Brass sliders

Increase durability

Specially developed fingers

Made of Hardox steel for high strength

Center mounting

Optimal traction on the cutter bar

Equipment

Specially developed fingers

Made of Hardox steel which ensure high power and long life

The HX 230 is equipped with specially developed fingers that are made of Hardox steel. It increases the cutting power of the machine while lowering the costs for maintenance. You can use the HX 230 for both vertical and horizontal tree trimming due to the strength of the fingers.

Expand all equipment

Standard equipment

High performance gearbox

60 double strokes per minute

Oil flow divider

Trimmer bars in Hardox

Optional equipment

Hydr. quick rel. HX 170-270 / SC 6-8 S (OPTE1094)

Hydr. quick rel. HX 170-270 / SC 6-8 P (OPTE1095)

Hydr. quick rel. HX 170-270 / Twiga (OPTE597)

Quickcoupling mech. HX 170-270 / SC 6-8 S&P (OPTE1096)

Quickcoupling mech. HX 170-270 / Twiga (OPTE596)

Mounting

Adapter HX 170-270 / HXF 3302 (OPTE4200)

Adapter HX 170-270 / SC 6-8 S (OPTE1090)

Adapter HX 170-270 / SC 6-8 P (OPTE1089)

Adapter HX 170-270 / 90° slew, hy. / SC 6-8S (OPTE953.3)

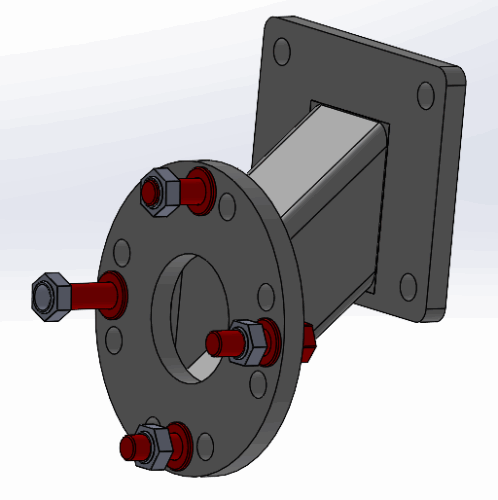

Adapter HX 170-270 / Twiga (OPTE320)

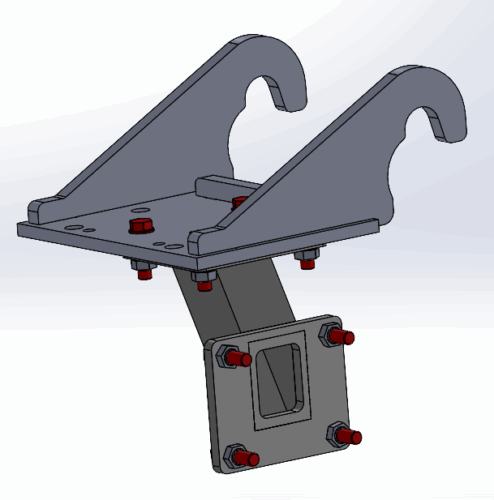

Adapter HX 170-270 / Herder (OPTE312)

Adapter kit for Tifermec incl. fittings and hoses (OPTE316)

Adapter HX 170-270 / McConnel (OPTE3001)

Adapter HX 170-270 / SMA (OPTE3003)

Adapter HX 170-270 / Dücker (OPTE4201)

Adapter HX 170-270 / Mulag (OPTE4202)

Adapter HX 170-270 / Twose (OPTE4660)

Adapter HX 170-270 / universel (OPTE3002)

Adapter HX 170-270 / Noremat (OPTE4233)

Adapter HX 170-270 / Puma 3303 R+L S&P&T (OPTE4311)

Equipment overview

High performance gearbox	Standard
60 double strokes per minute	Standard
Soft Turn technique	Standard
Oil flow divider	Standard
Trimmer bars in Hardox	Standard
Pressure relief valve	Standard
Quick release, hydraulic	Optional
Quick release, mechanical	Optional

Technical documents

Name

File type

OPTE4311 – Adapter HX 170-270 / Puma 3303 R+L S&P&T

pdf, 112.16 KB

Download

OPTE597 – Hydr. quick rel. HX 170-230 / Twiga

pdf, 286.62 KB

Download

OPTE596 – Quickcoupl. mech. HX 170-230 / Twiga

pdf, 256.21 KB

Download

1...

Sales material

Name

File type

Attachment Tools – Presentation

pdf, 19.26 MB

Download

Attachment Tools – Brochure

pdf, 12.16 MB

Download

HX 170-270 – Videos

zip, 114.33 MB

Download

FAQ

General questions

We sell our products through a network of dealers. We encourage you to contact your local GreenTec dealer for more information.

If you need any sales advice or cannot find a dealer near you, feel free to contact us on telephone: +45 75553644 or e-mail: sales@greentec.eu

We are available Monday to Thursday from 08.00 - 16.00 CET and Friday from 08.00 - 15.00 CET.

All products are manufactured in Denmark at our production facilities which consist of 5,500 m². We have employees welding components, assembling machines and checking features before the product is shipped to the customer.

We love to give customers a tour of our factory. If you are planning a visit to Denmark, you can schedule an appointment through e-mail: sales@greentec.eu

Our dealers sometimes do demonstrations. You must contact your local GreenTec dealer and ask if they have any upcoming demonstrations.

You cannot rent GreenTec machines directly through us.

We encourage you to contact your local GreenTec dealer to get a list of customers that might be able to offer this service.
