11 tools
Grass, hedge and tree maintenance
4.9 m
Huge flexibility with the arm reach
2,500 kg
Minimum vehicle weight
2-years warranty
High quality materials that ensure a long life
Quick jump to
Overview
Scorpion 490 PLUS

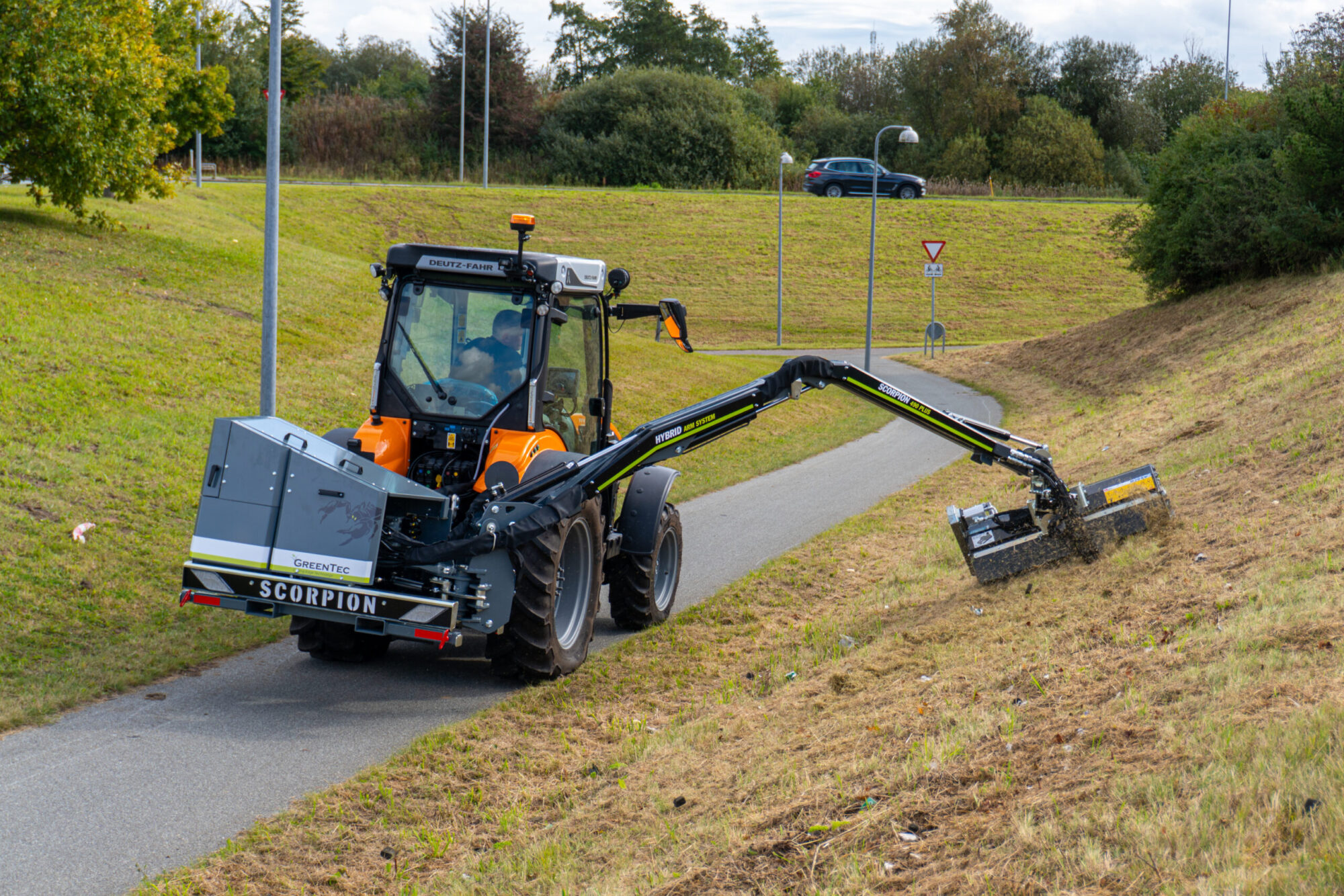

Our Scorpion 490 PLUS is a professional boom mower used by municipalities, agricultural contractors, forest workers and landscapers. A large selection of tools can be attached to the Scorpion boom mower for roadside maintenance, hedge cutting and tree trimming. The wide range of attachment tools make the Scorpion 490 PLUS a popular choice throughout the entire year.
The Scorpion 490 PLUS boom mower is designed for medium-sized tractors with a weight of at least 2,500 kg (5,512 lb). Instead of the traditional three-point mounting, the Scorpion models have four mounting points on the mainframe. It is a much faster and reliable mounting system.
Powerful features
Control the arm with or without parallel motion
Gives the driver a better view to the attachment tool
Hydraulic turn of the arm with Power Control
Specifications
Scorpion 490 PLUS
Horizontal reach |
4.9 m
|
16'1"
|
Vertical reach |
4.8 m
|
15'7"
|
Transport width |
1.7 m
|
5'5"
|
Pump |
36 cc gear pump
|
|
Hydraulic system |
70 l/min @ 210 bar
|
18.49 gpm @ 3046 psi
|
Alternative Hydraulic system |
52 l/min @ 210 bar
|
13.73 gpm @ 3046 psi
|
Weight without tools |
625 kg
|
1.377 lb
|
Minimum size of tractor |
2,500 kg
|
5,511 lb
|
Under the hood
Scorpion 490 PLUS
Hybrid arm system
Control the arm with or without parallel motion
Rotor Flex
270° turn of cutting head and 180° cutting angle
Danfoss joystick
4 proportional functions
Air stream control
Effective oil cooling
LED lights
Visible from a long distance
Flexibility
155° hydraulic turn of the arm
Strenx 700 steel
One of the most durable steel types in the world
Hydraulic system
36 cc gear pump
Rotor Flex
With Rotor Flex the cutting head is always in the driver’s natural field of vision
Rotor Flex has a double pivot joint which enables you to move the cutting head forward, so it is in the driver’s natural field of vision. The cutting head can also be moved behind the vehicle which is useful for verge mowing on small roads with oncoming traffic.
Auto Height Control (optional)
Relieves the driver from manual adjusting to the contours of the terrain
Auto Height Control is used for verge and ditch mowing. It ensures that the cutting head floats above the surface and does not mow into the ground by following the contours of the terrain. This is all done automatically. The driver does not need to maneuver the boom mower with the joystick.
Hybrid arm system
Switch between parallel and non-parallel motion
The parallel motion takes place through a Master Slave System and is especially used for hedge trimming. The non-parallel motion shines in cramped conditions, such as forest roads and trails. It can also be particularly useful for grass mowing in slopes and ditches.
Equipment overview
Hybrid Arm System with dual function |
|
Strenx 700 steel construction |
|
155° hydraulic turn of the arm with power control |
|
Rotor Flex, double pivot joint (270° turn of cutting head and 180° cutting angle) |
|
Auto Flex, automatic vertical positioning |
|
Danfoss proportional valve PVG 16 |
|
Danfoss joystick with 4 proportional functions |
|
2 oil flows: 52 and 70 l/min for attachment tool |
|
Hydraulic float of arm and cutting angle |
|
Oil cooler |
|
Air Stream Control (effective oil cooling) |
|
100 l (26.41 gallons) oil tank capacity |
|
4-point mounting for cat. 2 |
|
Automatic Hydraulic Security (AHS) |
|
PTO 450-540 rpm (rear mounted) |
|
Transport safety |
|
LED lights |
|
Auto Height Control (for verge mowing)* |
|
Quick release, hydraulic |
|
Quick release, mechanical |
|
Hose kit, 4 pieces for arm |
|
120 kg (264 lb) counterweights |
|
Bio oil |
|
* Cannot be retrofitted
Attachment tools
↔️ Range: 0.9 m (2'11")
🚜 Pace: 7 kmh (4 mph)
↔️ Range: 1.1 m (3'7")
🚜 Pace: 7 kmh (4 mph)
↕️ Range: 1.6 m (5'3")
🌳 Limb: Ø 12 cm (4.7")
↕️ Range: 1.3 m (4'3")
🌳 Limb: Ø 3 cm (1.2")
↕️ Range: 1.8 m (5'11")
🌳 Limb: Ø 4 cm (1.6")
↕️ Range: 2.1 m (6'11")
🌳 Limb: Ø 4 cm (1.6")
